Device control software for automatic graph plotting


Plotbot_logo

Plotbot controls two different devices and
plots measurement data in a scientific graph.
Plotbot automates complicated procdures and
routine works of user-made measurement systems.

Plotbot

  • Overview
  • Specification

Overview

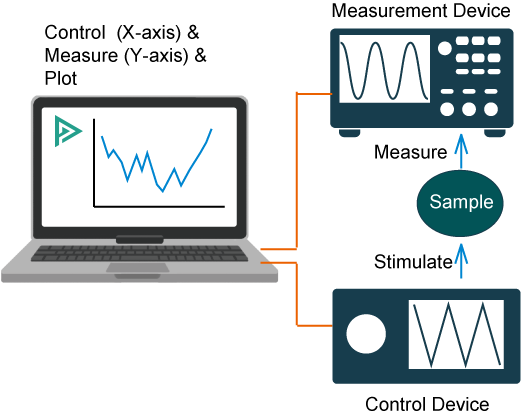

Plotbot controls two different devices, defined as a measurement device and a control device, and plots measurement data in a graph with X axis as parameters of the control device. Plotbot can connect any devices and automates complicated procdures and routine works of users' home-made measurement systems. Plotbot is an amazing software to provide R&D solution supporting users who don't want to take a time to develop their own software.


Plotbot Main Window



Demonstration movie of graph plotting.

Function

  • Plots data with measured data of a measurement instrument while controlling another instrument.
  • Various functions as a scientific graph software.

Features

  • Any deivce and instruments can be controlled.
  • GUI gives intuitive and easy operation to users' home-made systems/instruments.
  • Enables automation of users' home-made systems/instruments.
  • Easy development of your own home-made measurement systems.

Plotbot_Measurement_Control


Applications

  • Pump-probe Measurement system
  • Electrical propery dependency of semi-conductor with optical stimulation
  • I-V Measurement (Sink-Source) with optical stimulation
  • Others

Specifications
Functions
  • Plots data with measured data of a measurement instrument while controlling another instrument.
  • Various functions as a scientific graph software.
Measurement instruments
  • SourceMeter by Keythley, Model 6430 and others
  • Multifunctional deives by National instruments, USB-6001 and others
  • Any USB/Serial communication (RS232c etc.) devices.
  • Any analog-output instruments.
  • Ask us if your devices are not included above.
Control instruments
  • Wavelength tunable laser by NKTphotonics, SuperK Extreme & SuperK Varia
  • Multifunctional deives by National instruments, USB-6001 and others
  • Any USB/Serial communication (RS232c etc.) devices.
  • Any analog-controlled devices.
  • Ask us if your devices are not included above.
Operating environment Windows 10, 64bit
Others USB dongle license
